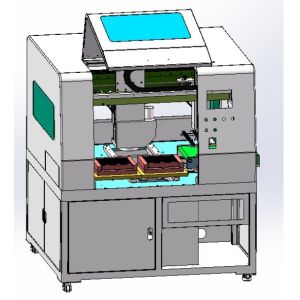

PCB V-groove online Depaneling machine 8A

1.Features
(1)PLC Man-machine exchange interface.
(2)Use Chinese language,can also use other language.
(3)Can store ten products program.
(4)The bottom is installed with adjustable foot cup casters to
facilitate the movement of the equipment, and it needs to be stable
and fixed when it is not moving.
(5)The upper round knife slitting device can effectively avoid the
interference of the spring on the PCB board.
(6)Data monitoring system: boot time monitoring, capacity
monitoring, equipment failure information and automatic rejection
system, etc..
(7)After cutting,the board will be transported out through the
conveyor belt.
2.Specifications
(1)UPH: 1000pcs/H±100pcs(for example one board with ten piece)
(2)Cutting area:300*300MM (can tailor-made)
(3)Thickness:0.6~3.0MM
(4)Board types:paper board,fiber board
(5)Working voltage:220V AC
(6)Working pressure:0.5~0.7MPA
(7)Weight:750KG
(8)Dimension:1500*1350*1680 MM
