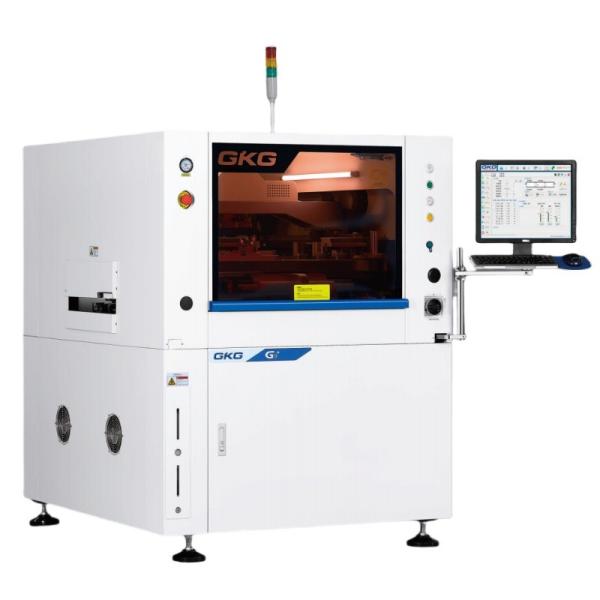

High Precision And High Speed Fully Automatic Solder Paste Printer
The G9+automatic tin paste printing press is a high-end model for
SMT high-end application, which can satisfy the printing process
requirements of 03015, 0.25 pitch, high precision and high speed.
Technical Parameter/Specifications
| Substrate processing | G9+ |
| Maximum board size | 450*340mm |
| Minimum board size | 50*50mm |
| Board thickness | 0.4~6mm |
| Maximum board weight | 3Kg |
| Board edge clearance | 2.5mm |
| Board height | 15mm |
| Transport height | 900±40mm |
| Transport Speed | 1500mm/s(Max) Program Control |
| Transport direction | One stage |
| Board clamp | Patented over the top clamping |
| Side clamping |
| Adsorption function |
| Support System | Magnetic Pin |
| Support Block |
| Manual up-down table |
| Machine Parameter | G9+ |
| Power Source | AC:220±10%,50/60HZ,2.5KW |
| Air Pressure | 4~6Kgf/cm² |
| Air Consumption | About 5L/min |
| Operating Temperature | -20℃~+45℃ |
| Operating Humidity | 30%~60% |
| Machine Dimension(Without Tower light) | 1530(H)mm |
| Machine Length | 1172(L)mm |
| Machine Width | 1385(W)mm |
| Machine Weight Approx: | Approx:1000Kg |
Dimensional Appearance
BTB Dimensional Appearance
Performance
CCD digita| camera system
Total new optical path system, uniform circular light and high
brightness of coaxial light source. With both light source system,
brightness can adjust to an infinite loop, allowing different mark
point can be easily recognize (including uneven mark point) such as
tin plating, copper plating, silver plating, hot air soldering, FPC
and various types of differentPCB color.
Highly precise PCBthickness adjustmenttable
Extremely reliable structure with stable XY movement. Manual
adjustment makes it a breeze to accommodate different PCB
thickness.
Guide Rail positioning System
New pattern patented guide rail can detachable, programmable
flexible side clamp, specific to FPC, PCBwarpage, perform a unique
camping plate device. Through software programming can
automatically stretch out and draw back unaffected PCB thickness.
Innovative squeegee structure design
Adopt a comprehensive squeegee system which enhances stability and
shelf-life.
High speed stencil cleaning
Downward dispensing cleaning structure successfully prevents
clogged opening (which is always the root cause for ineffective
cleaning) from taking place. The length of solvent dispensed can
also be easily amended with software control.
New multi-function interface
Simplicity, Clearty understand, friendly user.
Actual temperature and humidity monitor function.
Option 4.0
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
