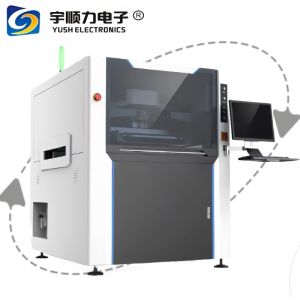

PCB Fully Automatic Solder Paste Printer YSL-H510

PCB Fully Automatic Solder Paste Printer YSL-H510


Features

  • Applicatelinear motor- high speed and high precision
  • The printing leader of 03015 micro component
  • New mechanical design-more stable and convenient
  • New printing head design-high printing quality


Technical parameters



Basic Parameters


Screen Frame Size(mm)
650(X)*550(Y)-737(X)*737(Y)
Thickness:20-40mm
Min PCB(mm)50(X)*50(Y)mm
Max PCB(mm)
510(X)*510(Y)mm
Thickness
0.2mm~6mm (Use jig when pcb less than 0.4mm)
Curve
<1% (Diagonal measurement)
PCB backside Part Height
18mm
Conveyor height
900±40mm
Support
Magnetic support, Magnetic piece , vacuum chamber (option)
ClampSide clamp(Standard),please read the option table
Edge distance
PCB process edge≥2.5mm
Conveyor speed
0 ~ 1500mm/sec, increment 1mm
Conveyor belt
U type sync belt
Stopper method
Air cylinder
Stopper positionSet the PCB Stopper position according to the size of board
Flow direction
L-R、R-L、L-L、R-R depends on customer


Print System
Print speed5 - 200mm/s adjustable
Print head
Servo motor drive scraper lifting
Scraper
Steel scraper,
Scraper angle
60°
Scraper pressure
0-20kg

Accuracy
Table adjusting range
X=±10mm, Y=±10mm, θ=±2°
Positional accuracy
±0.01mm
Printing accuracy
±0.025mm

Cleaning System
Cleaning system
Dry and wet(standard) ,vacuum model(optional)
Liquid level detectionLiquid level auto alarm detection
Power Parameters
Main power supplyAC 220v±10% 50/60HZ Single phase
Total powerAbout 3kw
Main air supply
4.5~6kgf/cm2
Machine weightabout 1300kg
Machine dimensions

1350(L)x1625(W)x1535(H)mm


Overall diagram


1.Machine housing module

2.Squeegee printing module

3.Stencil frame positioning module

4.Platform lifting module

5.Cleaning module

6.CCDimage capture module

7.Rail and conveyor module

8.Three color warning lamp

9.Display and input device
